JoC Module

Cut your development costs and save money

JoC Module

JoC Module

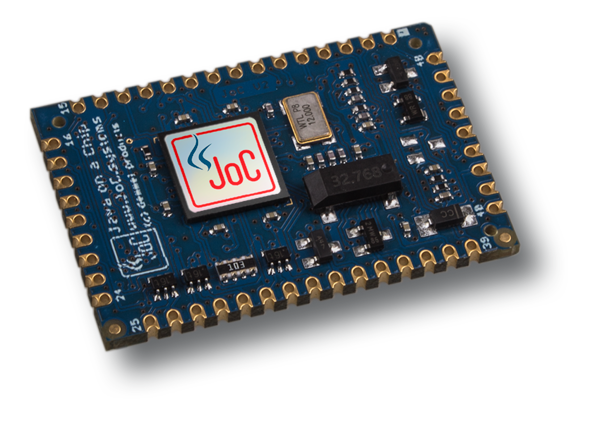

The highly integrated Java-programmable JoC Module with a size of only 24x36 mm integrates directly into the application hardware. It may be mounted via SMT or through-hole technology. The versatile interface options can easily be addressed under Java, making the JoC Module predestined for a wide range of applications. The Java code runs in the implemented Java Virtual Machine (VM) which is realized in firmware. There is no operating system developers have to deal with.

JoC Module Features at a Glance

  • Size of only 24x36 mm
  • Mounting via SMT or 2 mm through-hole technology
  • Wide supply voltage range of 2.7 - 5.5 V
  • Built-in 3.3 V regulator
  • Digital and analog I/Os
  • USB, 2x RS232 (TTL), I2C, SPI
  • PWM outputs
  • A/D and D/A converters
  • Keyboard interface for up to 128 keys
  • Rotary encoder interface
  • Real time clock with battery backup
  • Worldwide unique serial number on chip
  • Chip-only on request

JoC Module

The highly integrated Java-programmable JoC Module with a size of only 24x36 mm integrates directly into the application hardware. It may be mounted via SMT or through-hole technology. The versatile interface options can easily be addressed under Java, making the JoC Module predestined for a wide range of applications. The Java code runs in the implemented Java Virtual Machine (VM) which is realized in firmware. There is no operating system developers have to deal with.

JoC Module Features at a Glance

  • Size of only 24x36 mm
  • Mounting via SMT or 2 mm through-hole technology
  • Wide supply voltage range of 2.7 - 5.5 V
  • Built-in 3.3 V regulator
  • Digital and analog I/Os
  • USB, 2x RS232 (TTL), I2C, SPI
  • PWM outputs
  • A/D and D/A converters
  • Keyboard interface for up to 128 keys
  • Rotary encoder interface
  • Real time clock with battery backup
  • Worldwide unique serial number on chip
  • Chip-only on request
